Technical
Data
| Manufacturing
Standard : |
API 600 |
| Testing Standard
: |
API 598 |
| Flanges to :
|
ANSI B 16.5 |
| Face to face
to : |
ANSI B 16.10 |
|
Engineering
Options :
1) Stelliting is done on Seat
ring & Wedgeif required.
2) Remote Operation on Request
Note:
1) For 600 # Raised face hickness
= 6.4
2) For 600 # raised face thickness
is not included to flange thickness |

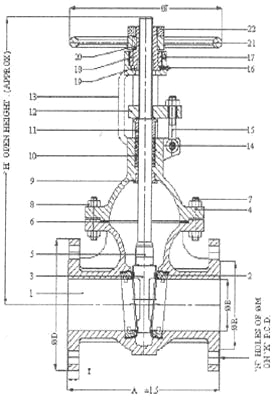

| List
Of Materials |
| Sr. |
Item |
Qty. |
Material |
| 1 |
Body |
1 |
ASTM- A 216 Gr.
WCB |
| ASTM-A 351 Gr.CF8 / CF8M |
| 2 |
Seat
Ring |
2 |
CS with 13% Cr.
Facing |
| AISI 304 / 316 (Integral) |
| 3 |
Wegde |
1 |
CS with 13% Cr.
Facing |
| AISI - 304 / 316 |
| 4 |
Spindle |
1 |
AISI - 410 |
| AISI - 304 |
| AISI - 316 |
| 5 |
Gasket |
1 |
Spiral Wound
SS 304 With CAF Filler /P.O |
| 6 |
Bonnet |
1 |
ASTM A-216 Gr.
WCB |
| ASTM A- 351 Gr. CF8/CF8M |
| 7 |
Bonnet Stud |
As Req. |
ASTM A - 193
Gr. B7 |
| 8 |
Bonnet Stud
Nut |
As Req. |
ASTM A - 194
Gr. 2 H |
| 9 |
Bonnet Bush |
1 |
AISI 410/304/316 |
| 10 |
Gland Packing |
MIN 7 |
Inconnel Wire
Reinforced Graphited asbestos |
| 11 |
Gland
Bush |
1 |
AISI - 410 |
| AISI - 304 |
| AISI - 316 |
| 12 |
Gland
Flange |
1 |
Carbon Steel |
| AISI - 304 |
| 13 |
Name Plate
|
1 |
Aluminium |
| 14 |
Cross bolt
& Nut |
2 |
Carbon Steel
/ AISI - 304 |
| 15 |
Eye Bolt
& Nut |
2 |
Carbon Steel
/ AISI - 304 |
| 16 |
Grease Nipple |
1 |
Commercial |
| 17 |
Grub Screw |
1 |
Commercial |
| 18 |
Yoke Bush |
1 |
Carbon Steel |
| 19 |
Yoke Sleeve |
1 |
Al.Bronze / Ni
- resist |
| 20 |
Hand Wheel
Key |
1 |
Carbon Steel |
| 21 |
hand Wheel |
1 |
Cast Iron /MI |
| 22 |
Hand Wheel
Nut |
1 |
Carbon Steel |
|
| SERVICE
RATING & TEST PRESSURE
( P S I G ) |
| |
|
HYDRO. |
|
| CLASS
|
TEMP |
BODY |
SEAT |
SEAT
AIR |
| 300 |
850F |
1114 |
814 |
100 |
| 600 |
850F |
2232 |
1629 |
100 |
|
| ASA - 600 |
| SIZE |
B |
A |
D |
T |
R |
K |
N |
M |
H |
J |
| 50 |
51 |
292 |
165 |
25 |
92 |
127 |
8 |
19 |
480 |
250 |
| 65 |
63 |
330 |
190 |
29 |
105 |
149 |
8 |
22 |
530 |
250 |
| 80 |
76 |
356 |
210 |
32 |
127 |
168 |
8 |
22 |
630 |
300 |
| 100 |
102 |
432 |
273 |
38 |
157 |
216 |
8 |
25 |
750 |
350 |
| 150 |
154 |
559 |
356 |
48 |
216 |
292 |
12 |
29 |
975 |
450 |
| 200 |
203 |
660 |
419 |
56 |
270 |
349 |
12 |
32 |
1230 |
500 |
|
| ASA - 300 |
| SIZE |
B |
A |
D |
T |
R |
K |
N |
M |
H |
J |
| 40 |
38 |
190 |
156 |
21 |
73 |
114 |
4 |
22 |
305 |
152 |
| 50 |
51 |
216 |
165 |
22 |
92 |
127 |
8 |
19 |
405 |
200 |
| 65 |
63 |
241 |
191 |
25 |
105 |
149 |
8 |
22 |
470 |
250 |
| 80 |
76 |
282 |
210 |
29 |
127 |
168 |
8 |
22 |
505 |
250 |
| 100 |
102 |
305 |
254 |
32 |
157 |
200 |
8 |
22 |
505 |
250 |
| 150 |
152 |
403 |
318 |
37 |
216 |
270 |
12 |
22 |
865 |
350 |
| 200 |
203 |
419 |
381 |
41 |
270 |
330 |
12 |
25 |
1092 |
450 |
| 250 |
254 |
457 |
445 |
48 |
324 |
387 |
16 |
29 |
1300 |
500 |
| 300 |
306 |
502 |
521 |
51 |
381 |
451 |
16 |
32 |
1440 |
550 |
|
