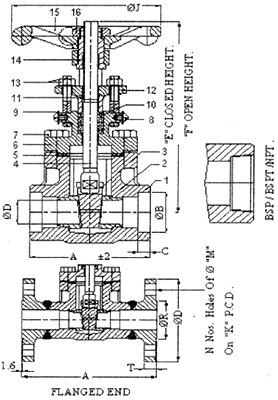

Forged Steel Gate Valve    Class  800 / 150 / 300



FLOVELL Forged Steel Gate Valves
These valves are made as per BS/DIN standards. Thorough testing of each and every part at every manufacturing stage is carried out in all FLOVELL Forged Steel Valves. Various parts such as forgings, bar stocks, bolting materials, and gaskets are all subjected to strict quality control. The result of these valves is that you can depend on for high performance in all the critical applications. The design is acknowledged for its reliability, safety, technical and construction features. The machining of the components is made with high precision machine tools operated by experienced engineers with a commitment to total quality. FLOVELL offers a broad range of standard forged steel gate, globe and check valves, reduced and full bore, in threaded, socket weld and butt-weld end connections.


Technical Data
Manufacturing Standard : API 602
Testing Standard : API 598 / BS 5146
Socket Weld & Threaded to : ANSI B16.11 /
ANSI B2.1
Flanges to : ANSI B 16.5
Face to face to : ANSI B 16.10
Engineering Options :

1)  Stelliting is done on Seat ring & Wedge if required


List Of Materials
Sr. Item Qty. Material
1 Body 1 A - 105
A - 182 F / 304
A - 182 F / 316
2 Seat Ring 2 AISI - 410
AISI - 304 (Integral)
AISI - 316 (Integral)
3 Wedge 1 AISI - 410 / CA - 15
AISI - 304 / CF8
AISI - 316 / CF8M
4 Spindle 1 AISI - 410
AISI - 304
AISI - 316
5 Gasket 1 Spiral Wound SS 304 with CAF Filler
6 Bonnet 1 A - 105
A - 182 F/ 304
A - 182 F/ 316
7 Bonnet Bolt 4 A 193 Gr. B7
8 Screw 2 Carbon Steel
9 Washer 2 Carbon Steel
10 Gland Packing MIN 6 Metallic Wire Reinforced asbestos
11 Gland Bush 1 AISI - 410
AISI - 304
AISI - 316
12 Gland Flange 1 AISI - 105
AISI - 304
13 Eye Bolt & Nut 2 Carbon Steel
AISI - 304
14 Yoke Sleeve 1 Ni-Resist
15 Hand Wheel 1 M.I./ C.I.
16 Hand Wheel Nut 1 Carbon Steel








Socket Weld End
SIZE A B C D E F J
15 87 21.7 9.5 9.5 155 169 85
20 90 27.1 12.7 12.7 157 174 85
25 105 33.78 12.7 17.5 172 194 90
32 128 42.57 12.7 23.8 234 262 145
40 128 48.64 12.7 28.6 234 267 145
50 142 61.11 16 36.5 236 277 145

ASA - 300
SIZE A D R T K N M
15 140 95 35 14 67 4 16
20 152 118 43 16 83 4 19
25 165 124 51 17.5 89 4 19
32 178 133 63 19 98 4 19
40 191 155 73 21 114 4 22
50 216 165 92 22 127 8 19



ASA - 150
SIZE A B C D E F J
15 108 89 35 11 60 4 16
20 118 98 43 11 70 4 16
25 127 108 51 11 79 4 16
32 140 118 63 13 89 4 16
40 165 127 73 14 98 4 16
50 178 152 92 16 121 4 19

TEST  PRESSURE ( P S I G )
CLASS BODY SEAT SEAT AIR
800 3000 2000 100
150 443 314 100
300 1114 814 100


All Dimensions are in M.M
